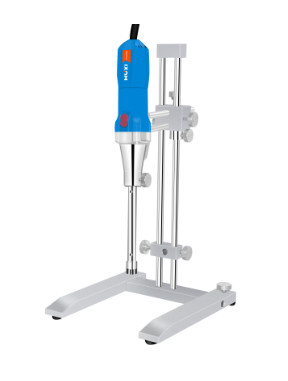

FJ series high speed homogenizer
Application:
●The laboratory high-shear dispersing emulsifier is dexterous and convenient. Can be operated by hand. High-quality motors are used for more stable operation and lower noise. It can be operated for a long time, a variety of working heads are available, vacuum operation can be realized, and a variety of high-demand dispersion, emulsification, and homogenization experimental requirements can be easily met.
Main Features:
1. Use high-quality motors, stable operation, lower noise, long-term operation, safe and reliable design.
2. All parts of the working head contacting materials are made of high-quality stainless steel with good corrosion resistance.
3. The working head is connected with the drive motor by a coupling, which is easy to disassemble and assemble.
4. The speed control frame with step less speed governor, which is convenient for speed control and stable operation.
| Model | HR-500 |
| Rotary Speed | 10000-31000r/min |
| Capacity | 0.2-7000ml (H2O) |
| Standard Head | 25G |
| Input Power | 500W |
| Output Power | 320W |
| Rotary Speed Display | Graduate Display |
| Speed Mode | Gear speed regulation |
| Head Material | 316L Stainless steel |
| Bearings Material | PTEE |
| proper temperature | ≤120C° |
| Allowable ambient temperature | 5-40C° |
| Allowable relative humidity | 80% |
| Process type | Micro batch processing |
| Host net Weight | 3kg |
| Power supply | AC 220V 50~60HZ |
| Host size (length x diameter) | 275×φ65mm |
| Host packing size | 470×340×205mm |
| Host GW | 4kg |
